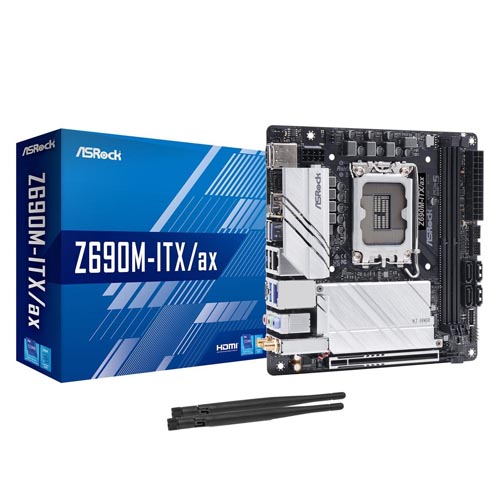

ASRock Z690M-ITX/ax LGA 1700 Intel Z690 DDR4 Mini ITX Intel Motherboard
In stock
₹21,500.00 ₹27,870.00
Supports 12th Gen Intel® Core™ Processors (LGA1700)
8 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 USB 3.2 Gen2x2 Type-C (1 Front, 1 Rear)
4 USB Rear 3.2 Gen2
2 USB Front 3.2 Gen1
Dragon 2.5G LAN, Intel® Gigabit LAN
802.11ax (WiFi 6E) + Bluetooth
| Brand | ASRock |
| Model | Z690M-ITX/ax |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| * Dedicated LGA1700 mounting bracket is required. | |
| CPU Type | Supports 12th Gen Intel Core Processors |
| Supports Intel Pentium / Celeron Processors | |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipsets | |
| Chipset | Intel Z690 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory | |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 5000+(OC)* |
| * Supports DDR4 3200 natively. | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16* |
| * Supports PCIe riser cards to extend one x16 slot to two x8 slots. | |
| * Supports NVMe SSD as boot disks. | |
| Other Slots | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* | |
| * Supports Intel Optane Technology. | |
| * Supports Intel Volume Management Device (VMD). | |
| * Supports NVMe SSD as boot disks. | |
| * Supports ASRock U.2 Kit. | |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Dragon RTL8125BG |
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 10/100/1000/2500Mbps + 10/100/1000Mbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| IEEE 802.11a/b/g/n/ax | |
| Bluetooth | Yes |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Ports |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection | |
| Other Connectors | 1 x RGB LED Header |
| * Supports in total up to 12V/3A, 36W LED Strip. | |
| 1 x Addressable LED Header | |
| * Supports in total up to 5V/3A, 15W LED Strip. | |
| 1 x CPU Fan Connector (4-pin) | |
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| 1 x Chassis Fan Connector (4-pin) | |
| * The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. | |
| 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| 1 x Front Panel Audio Connector | |
| Physical Spec | |
| Form Factor | Mini ITX |
| Dimensions (W x L) | 6.7″ x 6.7″ |
| Power Pin | 1 x 24 pin ATX Power Connector |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| Windows Compatibility | |
| Windows 11 | Ready |
| Features | |
| Features | Unique Feature: |
| ASRock USB 3.2 Gen2 | |
| ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s) | |
| ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s) | |
| ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| ASRock Super Alloy | |
| Premium 60A Power Choke | |
| 50A Dr.MOS | |
| Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| 8 Layer PCB | |
| 2.5G LAN | |
| 802.11ax Wi-Fi 6E | |
| ASRock Auto Driver Installer | |
| ASRock Steel Slot | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| BIOS Feature: | |
| 256Mb AMI UEFI Legal BIOS with multilingual GUI support | |
| ACPI 6.0 Compliant wake up events | |
| SMBIOS 2.7 Support | |
| CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment | |
| Support CD: | |
| Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar | |
| Software and UEFI: | |
| Software | |
| ASRock Motherboard Utility (A-Tuning) | |
| ASRock Dragon 2.5G LAN Software | |
| ASRock Polychrome SYNC | |
| * These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| UEFI | |
| ASRock EZ Mode | |
| ASRock Full HD UEFI | |
| ASRock Auto Driver Installer | |
| ASRock My Favorites in UEFI | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| ASRock Easy RAID Installer | |
| Hardware Monitor: | |
| Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans | |
| Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V | |
| OS: | |
| Microsoft Windows 11 / 10 64-bit | |
| Certifications: | |
| FCC, CE | |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Packaging | |
| Package Contents | Accessories: |
| Quick Installation Guide, Support CD, I/O Shield | |
| 2 x SATA Data Cables | |
| 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| 2 x Screws for M.2 Sockets |
