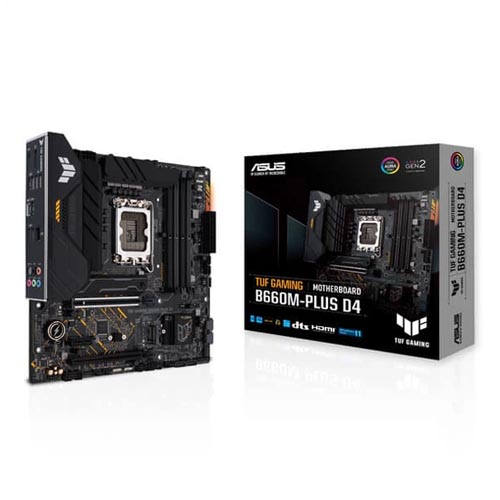

ASUS B660 Chipset TUF Gaming B660M-Plus D4 Intel B660 Motherboard
In stock
₹16,499.00 ₹22,000.00
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
- Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
- Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
- Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/ |
| 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Graphics | 1 x DisplayPort** |
| 1 x HDMI® port*** | |
| *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| ***Supports 4K@60Hz as specified in HDMI 2.1. | |
| **** VGA resolution support depends on processors’ resolution. | |
| Expansion Slots | Intel® 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| Intel® B660 Chipset* | |
| 1 x PCIe 3.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x1 slot | |
| * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 | |
| Intel® 12th Gen processors support PCIe 4.0 x4 mode. | |
| Intel® B660 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. | |
| Ethernet | TUF LANGuard |
| USB | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 4 x USB 3.2 Gen 2 ports (4 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Power pre-regulator reduces power input noise to ensure consistent performance | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| 4 x USB 3.2 Gen 2 ports (4 x Type-A) | |
| 1 x USB 3.2 Gen 1 port (1 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x 20-3 pin System Panel header with Chassis intrude function | |
| 1 x Thunderbolt™ header | |
| Special Features | ASUS TUF PROTECTION |
| DIGI+ VRM (Digital power design with DrMOS) | |
| Enhanced DRAM Overcurrent Protection | |
| ESD Guards | |
| TUF LANGuard | |
| Overvoltage Protection | |
| SafeSlot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| Flexible M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| CPU Socket lever protector | |
| ProCool | |
| Pre-mounted I/O shield | |
| SafeDIMM | |
| AURA Sync | |
| AURA RGB header | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| AURA Creator | |
| AURA Sync | |
| Fan Xpert 2+ | |
| Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| Performance And Power Saving Utility | |
| TurboV EVO | |
| EPU | |
| DIGI+ VRM | |
| TUF GAMING CPU-Z | |
| DTS Audio Processing | |
| MyASUS | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x M.2 Rubber Package | |
| 1 x M.2 SSD screw package | |
| 1 x TUF Gaming sticker | |
| Installation Media | |
| 1 x Support DVD | |
| Documentation | |
| 1 x TUF Certification card | |
| 1 x User guide | |
| Form Factor | microATX |
| 24.4cm x 24.4cm | |
| Warranty | 3 Years |
Motherboard set
- ASUS
- Intel
- LGA 1700
- B660
- DDR4
- 128 GB
- M-ATX
- 5333 MHz
- SSD, HDD, M.2
