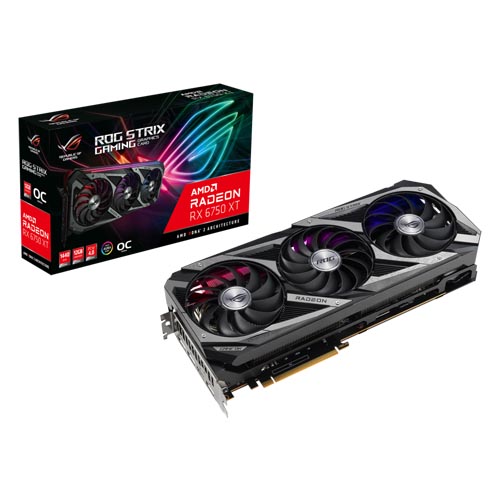

ASUS ROG Strix Radeon RX 6750 XT OC Edition 12GB GDDR6 Graphic Card ROG-STRIX-RX6750XT-O12G-GAMING
Overview :
- OC mode: Up to 2643 MHz (Boost Clock)/up to 2574 MHz (Game Clock)
- Axial-tech Fan Design has been enhanced with more fan blades and a new rotation scheme.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- MaxContact heat spreader allows 2X more contact with the GPU chip for improved thermal transfer.
- A reinforced frame prevents excessive torsion and lateral bending of the PCB.
- FanConnect II equips a hybrid-controlled fan header for optimal system cooling.
- A vented backplate prevents hot air from recirculating through the cooling array.
| Graphic Engine |
Radeon RX 6750 XT |
| Bus Standard |
PCI Express 4.0 |
| OpenGL |
OpenGL®4.6 |
| Video Memory |
12GB GDDR6 |
| Engine Clock |
OC mode : up to 2643 MHz (Boost Clock)/2574 MHz (Game Clock) |
| |
Gaming mode : up to 2623 MHz (Boost Clock)/2554 MHz (Game Clock) |
| Stream Processors |
2560 |
| Memory Speed |
18 Gbps |
| Memory Interface |
192-bit |
| Resolution |
Digital Max Resolution 7680 x 4320 |
| Interface |
Yes x 1 (Native HDMI 2.1) |
| |
Yes x 3 (Native DisplayPort 1.4a) |
| |
HDCP Support Yes (2.3) |
| Maximum Display Support |
4 |
| NVlink/ Crossfire Support |
Yes |
| Accessories |
1 x ROG Velcro Hook & Loop |
| |
1 x Collection card |
| |
1 x Speedsetup Manual |
| Software |
ASUS GPU Tweak II & Drivers: please download all software from the support site. |
| Dimensions |
322 x 141 x 56.5 mm |
| |
12.68 x 5.55 x 2.22 inches |
| Recommended PSU |
750W |
| Power Connectors |
2 x 8-pin |
| Slot |
2.9 Slot |
| AURA SYNC |
ARGB |
Graphic Card set
-
Asus
-
AMD Radeon
-
12 gb
-
RX 6750 XT
-
GDDR6
