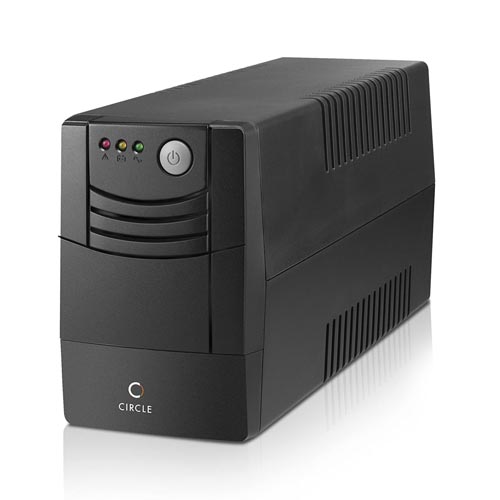

Circle Power 1KVA UPS
Overview :
BACKUP POWER
Protects computers from sudden power loss with the backup battery, and provides sufficient time to save valuable files as well as shut down the system safely.
VOLTAGE STABILIZER
Protects computer from blackouts, sags, and other voltage irregularities.
USER FRIENDLY
Automatic line-to-battery switchover and comprehensive display eases operations.
| Weight | 8 kg |
| Dimensions | 37 × 17 × 18 cm |
| Brand | Circle |
| MODEL NO | Power1KVA1 |
| CAPACITY | 1000VA/600W |
| INPUT | Voltage : 230VAC |
| Voltage Range : 140-300VAC | |
| Frequency : >40Hz (Auto Sensing) | |
| OUTPUT | Voltage : 230VAC |
| Voltage Regulation (Battery Mode) : +/-10% | |
| Frequency : 50Hz | |
| Frequency Regulation (Battery Mode) : +/-1 Hz | |
| Output Waveform : Modified Sinewave | |
| BATTERY | Battery Type : 12V7Ah x 2 |
| Backup Time (15″ monitor) : 25-35 minutes | |
| Recharge Time : 6 hours to 90% after complete discharge | |
| TRANSFER TIME (TYPICAL) | 4-10 ms |
| INDICATOR | AC Mode : Green Lighting |
| Battery Mode : Yellow Flashing | |
| Fault : Red Lighting | |
| AUDIBLE ALARM | Backup Mode : Sounding Every 10 Seconds |
| Low Battery : Sounding Every Seconds | |
| Overload : Sounding Every 0.5 Seconds | |
| Fault : Continously Sounding | |
| PROTECTION | Full Protection Overload, Overcharge, and discharge protection |
| WARRANTY | 2 Years (1 Year on battery) |
