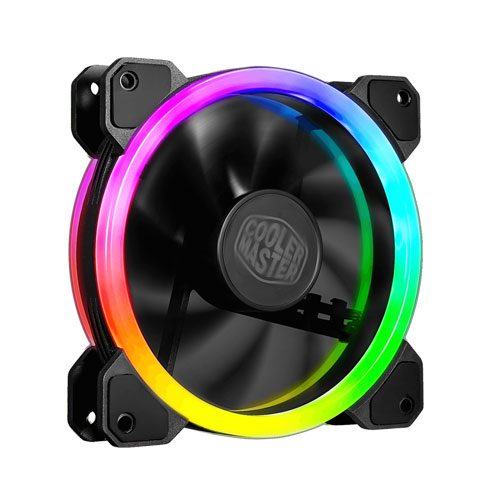

MasterFan MF120 S is the latest series of products in the MasterFan family. It is designed for customers who like to assemble computers. Whether it is a CPU cooler or a chassis air intake fan, it is a choice you must not miss. With the ARGB dual halo lighting design, it brings the most dazzling color performance to the computer, and at the same time provides high wind pressure and high airflow heat dissipation performance. The MF120 S series adopts Coolcode’s unique noise reduction technology and the perfect combination of fan blade design. During the use of the computer, the entire system can operate stably in a quiet environment.
ADDRESSABLE RGB DUAL HALO LIGHTING EFFECT
Addressable RGB dual halo lighting effect, both halos are composed of ARGB lamp beads that can be independently controlled, ensuring that you can bring the most diverse dazzling effects to your computer.
EXCELLENT BEARING STRUCTURE
Mature bearing technology ensures more stable operation, higher durability and longer service life of the fan.
The four corners are equipped with anti-vibration pads, which can minimize the noise and vibration generated when the fan is running.
| PRODUCT NUMBER | MFW-B2DN-12NFA-S2 |
| FAN PROFILE | Programmable RGB (Addressable RGB) |
| SPEED OF THE FAN | 1200 RPM ± 10% |
| FAN AIR VOLUME | 32 CFM (maximum) |
| FAN PRESSURE | 0.6 mmH2O (maximum) |
| FAN NOISE LEVEL | 15 dBA |
| FAN SIZE (LENGTH X WIDTH X HEIGHT) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| FAN MTBF | 160,000 hours |
| FAN BEARING TYPE | Rifle Bearing |
| FAN CONNECTION INTERFACE | 3-Pin |
| FAN RATED VOLTAGE | 12VDC |
| FAN RATED CURRENT | 0.1A |
| FAN SAFETY CURRENT | 0.16A |
| RGB CONNECTION INTERFACE | 3-Pin |
| RGB RATED VOLTAGE | 5V DC |
| RGB RATED CURRENT | 0.45A |
| FAN POWER CONSUMPTION | 1.2W |
| FAN WEIGHT | 153g / 0.34 lbs |
| PRODUCT WARRANTY | 2 years |
| RADIATOR TYPE | Chassis fan |
| SERIES | MasterFan |
| FAN SIZE | 120 |
| FAN LED TYPE | ARGB |
