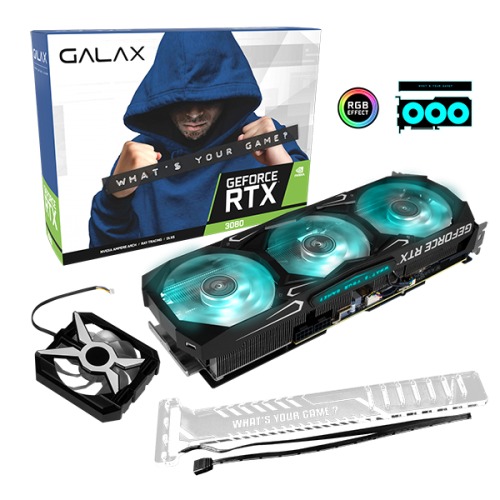

The all-new GALAX Serious Gaming Edition has equipped with 1-Clip Booster, which can be installed at the back plate and it is the precision and quality that win. When the fan is at the back the PCB is in fact much shorter than the cooler and the key is to allow air to flow as easy as they could, therefore GALAX built larger holes that allows air to flow through to fulfil the first requirement.
Apart from that, the advantage of adding a fan on the back plate, the 1-Clip booster fan design sucks the air out instead of blowing the air in, creating a technically-correct push-pull cooling effects. When this additional fan is used, it can achieve better performance as if a GPU running with a normal back plate.
| Brand |
GALAX |
|---|---|
| Graphic Chip Set |
NVIDIA |
| Graphic Memory |
10 GB |
| Graphic Card Series |
GeForce RTX™ 3080 SG (1-Click OC) |
| System Memory Specification |
GDDR6X |
| CUDA Core |
8704 |
| Core Clock |
1-Click OC Clock (MHz) 1725, Boost Clock (MHz) 1710 |
| Card Bus |
PCI Express 4.0 |
| MAX MEMORY SUPPORT |
32 GB |
| Memory Speed |
19 Gbps |
| Product Code |
38NWM3MD99NN |
| Memory Bandwidth (GB/sec) |
936 GB/Sec |
| Memory Interface |
320-bit |
| G-SYNC® TECHNOLOGY |
NVIDIA® G-SYNC™ Compatible, Yes |
| Country of Origin |
China |
| VR READY |
Yes |
| DirectX |
12 |
| OpenGL |
4.6 |
| HDCP SUPPORT |
Y |
| Output |
DisplayPort 1.4a, HDMI 2.1 |
| Fan Type |
192mm Triple Fan |
| Power requirement |
750W |
| Power Connectors |
8 Pin* 2 |
| Operating System |
Linux 64-bit, Windows® 10 64-bit |
| Card size |
329*130*61mm |
