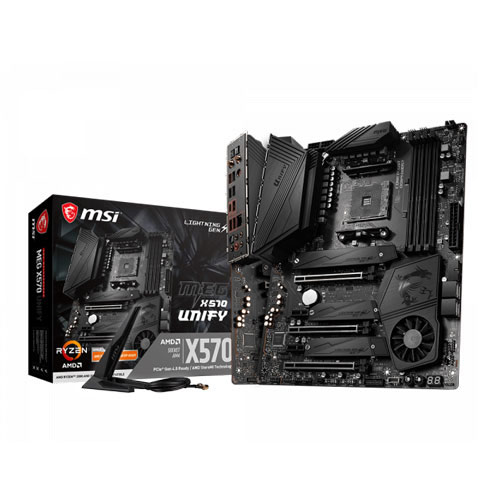

Unify your power and join the dark side. Win games and set records with 12+2+1 IR digital power, All-Metal Extended Heatsink, Triple Lightning M.2 with Shield Frozr, Audio Boost HD, Game Boost and 2.5G Gaming LAN plus WIFI 6 solution.
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.
Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Processor
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Chipset
AMD X570 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Slots
2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
Supports 2242/ 2260 /2280/ 22110 storage devices
RAID
Supports RAID 0, RAID 1 and RAID 10
USB
3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Audio
1x Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
1x Realtek® ALC4050H Codec
Supports S/PDIF output
LAN
1x Realtek® RTL8125 2.5 Gbps LAN controller
WiFi & Bluetooth
Intel® Wi-Fi 6 AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth 5
The Wireless module is pre-install in the M2_4 (Key-E) slot
Internal connectors
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button
Back panel ports
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
1x USB 3.2 Gen 2 Type-C Port
1x 4-pin CPU fan connector
5x 4-pin system fan connectors
1x 4-pin water-pump connector
1x Front panel audio connector
Dimensions
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
Operating System
Support for Windows® 10 64-bit
Mounting
9 mounting holes
Warranty
3 Years
Motherboard set
MSI
AMD
AMD AM4
X570
DDR4
128 GB
ATX
4600 MHz
SSD, HDD, M.2
