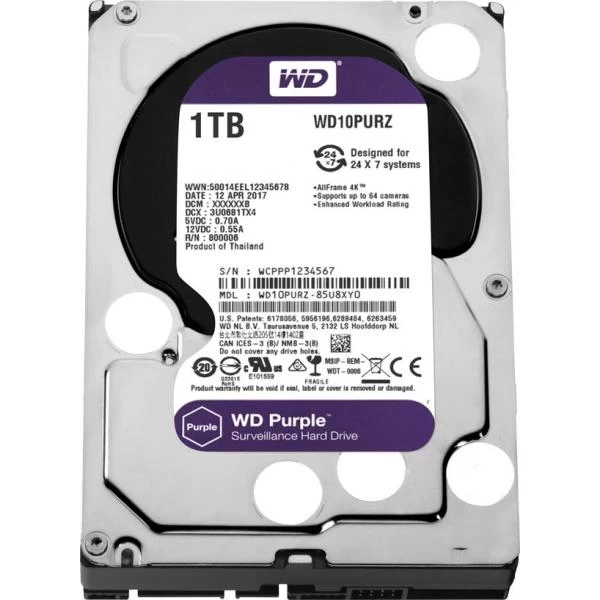

Western Digital Purple 1TB 5400 RPM

Specifications

1TB

Model number

WD10PURZ

Formatted capacity

1TB

Form factor

3.5-inch

Advanced Format (AF)

Yes

RoHS compliant

Yes

Product Features

Cameras supported

Up to 64

Maximum drive bays supported

8

Tarnish resistant components

No

Performance

Interface transfer rate (max)

Buffer to host

6 Gb/s

Host to/from drive (sustained)

110 MB/s

Cache (MB)

64

Performance Class

5400 RPM Class

Reliability/Data Integrity

Load/unload cycles

300,000

Annualized workload rating

180TB/yr

Non-recoverable read errors per bits read

1 in 1014

Power Management

Average power requirements (W)

Read/Write

3.3

Idle

2.9

Standby and Sleep

0.4

Environmental Specifications

Temperature (°C, on the base casting)

Operating

0 to 65

Non-operating

-40 to 70

Shock (Gs)

Operating (2 ms, read/write)

30

Operating (2 ms, read)

65

Non-operating (2 ms)

350

Acoustics (dBA)

Idle

21

Seek (average)

22

Physical Dimensions

Height (in./mm, max)

1.028/26.1

Length (in./mm, max)

5.787/147

Width (in./mm, ± .01 in.)

4/101.6

Weight (lb/kg, ± 10%)

0.99/0.45

Warranty

3 Years

Note

***Features, Price and specifications are subject to change without notice.
